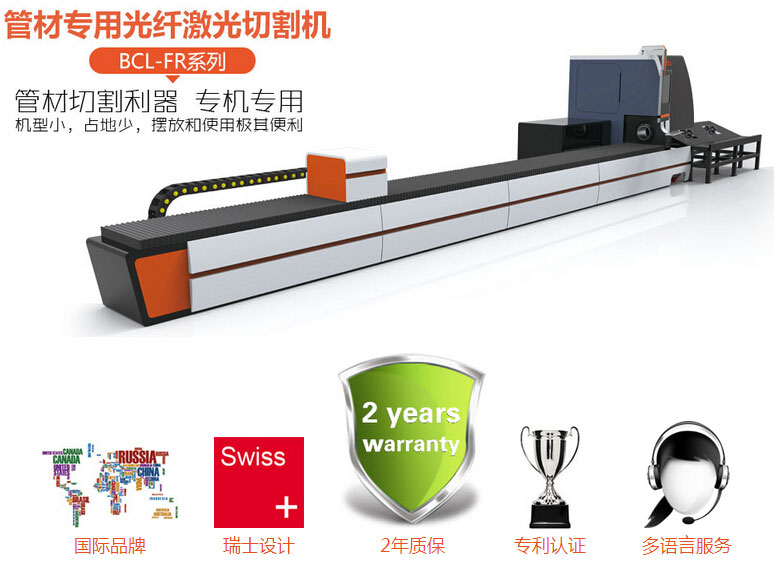

| 设备型号 | BCL4000YR/BCL6000YR | |
| 激光器发生器 | 光纤激光器 | |
| 最大输出功率 | 200w/300w/400w/500w/1000w/2000w | |
| 脉冲宽度 | 0.3～20ms | |
| 脉冲频率 | 1～300Hz | |
| 激光功率稳定度 | ≤±3% | |
| 最大管材切割厚度 | ≤6mm(视材料不同，切割厚度不同) | |
| 有效切割管材直径 | ≤150mm | |
| 有效管材切割长度 | 4000mm/6000mm | |
| 工作台轴向定位精度 | ≤±0.08㎜/1000㎜ | |
| 工作台重复定位精度 | ≤±0.04㎜ | |
| 电力需求 | 380V/50Hz/100A | |
| 切割气体要求 | 氧气、氮气或空混气体 | |
| 切割气体压力 | ＞5公斤 | |
| 光纤激光机切割厚度及速度参数 | |||||||||
| 材料 | 厚度(mm) | 500W | 1000W | 2000W | 200W | 300W | |||
| 最大切割速度m/min | 最佳切割速度m/min | 最大切割速度m/min | 最佳切割速度m/min | 最大切割速度m/min | 最佳切割速度m/min | 最佳切割速度m/min | 最佳切割速度m/min | ||
| 碳钢（氧气辅助） | 0.2 | - | - | - | - | - | - | 25.0 | 30.0 |
| 0.4 | - | - | - | - | - | - | 15.0 | 20.0 | |
| 0.6 | - | - | - | - | - | 7.0 | 12.0 | ||
| 0.8 | - | - | - | - | - | - | 3.0 | 5.0 | |
| 1 | 15.0 | 10.0 | 24.0 | 16.0 | 35.0 | 22.0 | 2.2 | 3.0 | |
| 1.5 | - | - | 1.5 | 1.8 | |||||
| 2 | 8.0 | 6.0 | 13.0 | 10.0 | 22.0 | 16.0 | 1.0 | 1.3 | |
| 2.5 | - | - | - | - | - | - | 0.6 | 0.9 | |
| 3 | 4.0 | 3.0 | 8.0 | 5.0 | 12.0 | 8.0 | - | 0.6 | |
| 4 | 2.0 | 1.5 | 4.0 | 2.5 | 7.0 | 4.0 | - | - | |
| 5 | 1.0 | 0.8 | 3.0 | 2.0 | 5.0 | 3.0 | - | - | |
| 6 | 0.8 | 0.6 | 2.0 | 1.5 | 3.5 | 2.5 | - | - | |
| 8 | - | - | 1.2 | 1.0 | 2.0 | 1.6 | - | - | |
| 10 | - | - | 1.0 | 0.8 | 1.8 | 1.3 | - | - | |
| 12 | - | - | 0.8 | 0.5 | 1.3 | 1.0 | - | - | |
| 16 | - | - | - | - | 1.0 | 0.8 | - | - | |
| 20 | - | - | - | - | 0.8 | 0.6 | - | - | |
| 不锈钢（空气辅助） | 0.2 | - | - | - | - | - | 25.0 | 30.0 | |
| 0.4 | - | - | - | - | - | 10.0 | 18.0 | ||
| 0.5 | 25.0 | 20.0 | - | - | - | - | - | - | |
| 0.6 | - | - | - | - | 3.8 | 9.0 | |||
| 0.8 | 20.0 | 16.0 | - | - | - | - | 1.6 | 5.0 | |
| 0.8(带膜切) | 15.0 | 10.0 | - | - | - | - | - | - | |
| 1 | 15.0 | 10.0 | 24.0 | 16.0 | 35.0 | 22.0 | 1.0 | 2.2 | |
| 1.5 | - | - | - | - | 0.6 | 1.2 | |||
| 2 | 6.0 | 4.0 | 10.0 | 6.0 | 16.0 | 10.0 | - | 0.5 | |
| 3 | 1.5 | 1.0 | 3.0 | 2.0 | 9.0 | 5.0 | - | - | |
| 4 | - | 2.0 | 1.5 | 4.5 | 3.0 | - | - | ||
| 5 | - | 1.3 | 1.0 | 3.5 | 2.5 | - | - | ||
| 6 | - | - | - | 3.0 | 2.0 | - | - | ||
| 8 | - | - | - | 1.2 | 1.0 | - | - | ||
| 镀锌板（氧气辅助） | 0.5 | 20.0 | 16.0 | - | - | - | - | - | - |
| 1 | 15.0 | 10.0 | 24.0 | 16.0 | 35.0 | 25.0 | - | - | |
| 2 | 5.0 | 3.0 | 8.0 | 5.0 | 12.0 | 8.0 | - | - | |
| 3 | 1.0 | 0.6 | 2.0 | 1.5 | 5.0 | 3.0 | - | - | |
| 4 | - | - | 1.2 | 1.0 | 4.0 | 2.5 | - | - | |
| 6 | - | - | - | - | 3.0 | 2.0 | - | - | |
| 铝板 | 0.5 | 3.0 | 2.5 | - | - | - | - | - | - |
| 1 | 2.4 | 2 | 8.0 | 6 | 13.0 | 10 | - | - | |
| 1.5 | 2.0 | 1.5 | 2.5 | 2 | 5.2 | 4 | - | - | |
| 2 | 1.5 | 1 | 1.8 | 1.5 | 2.6 | 2 | - | - | |
| 3 | 0.8 | 0.6 | 1 | 0.8 | 1.3 | 1 | - | - | |
| 4 | - | - | - | - | 1.0 | 0.8 | - | - | |
| 5 | - | - | - | - | 0.8 | 0.6 | - | - | |
| 铜板 | 0.5 | 2.0 | 1.5 | 3.0 | 2.5 | 5.0 | 4 | - | - |
| 1 | 1.5 | 1 | 2.0 | 1.5 | 3.0 | 2.4 | - | - | |
| 2 | 0.8 | 0.6 | 1.5 | 1 | 2.5 | 2 | - | - | |
| 3 | - | - | 0.7 | 0.5 | 1.5 | 1 | - | - | |
| 4 | - | - | - | - | 0.8 | 0.5 | - | - | |
