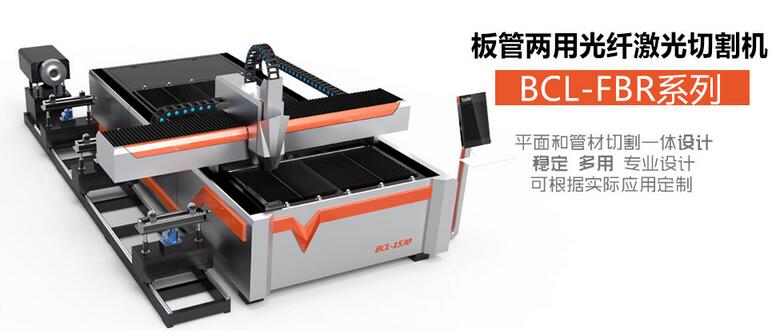

技术参数
| 型号 | BCL 1530FBR | BCL 1540FBR | 可选 |
| 切割范围(长×宽) | 1500*3000mm | 1500*4000mm | 根据需要 |
| 激光器介质 | 半导体泵浦连续掺镱光纤 | ||
| 最大空行速度 | 100m/min | ||
| 最大切割速度 | 35m/min | ||
| 定位精度 | 0.03mm | ||
| 重复定位精度 | 0.02mm | ||
| 冷却方式 | 水冷 | ||
| 激光器输出功率 | 500W/1000W/2000W（可选200W/300W/1500W/2400W/3000W） | ||
| 最小线宽 | 0.1mm | ||
| 驱动方式 | 伺服电机 | ||
| 传动方式 | 丝杠或齿轮齿条 | ||
| 电力配置 | 380V/50Hz | ||
| 连续工作时间 | 24小时 | ||
| 相关重量 | 整机约5吨，实际重量根据配置决定 | ||
| 主机占地面积（长*宽*高） | 3.4*4.7*1.9m | 3.4*5.7*1.9m | 根据需要 |
| 配件占地面积以500W为例（长*宽*高） | 水冷机 1*1*1.2m 控制柜 1*0.8*1.8m 激光器 0.5*0.6*0.14m | ||
| 光纤激光机切割厚度及速度参数 | |||||||||
| 材料 | 厚度(mm) | 500W | 1000W | 2000W | 200W | 300W | |||
| 最大切割速度m/min | 最佳切割速度m/min | 最大切割速度m/min | 最佳切割速度m/min | 最大切割速度m/min | 最佳切割速度m/min | 最佳切割速度m/min | 最佳切割速度m/min | ||
| 碳钢（氧气辅助） | 0.2 | - | - | - | - | - | - | 25.0 | 30.0 |
| 0.4 | - | - | - | - | - | - | 15.0 | 20.0 | |
| 0.6 | - | - | - | - | - | 7.0 | 12.0 | ||
| 0.8 | - | - | - | - | - | - | 3.0 | 5.0 | |
| 1 | 15.0 | 10.0 | 24.0 | 16.0 | 35.0 | 22.0 | 2.2 | 3.0 | |
| 1.5 | - | - | 1.5 | 1.8 | |||||
| 2 | 8.0 | 6.0 | 13.0 | 10.0 | 22.0 | 16.0 | 1.0 | 1.3 | |
| 2.5 | - | - | - | - | - | - | 0.6 | 0.9 | |
| 3 | 4.0 | 3.0 | 8.0 | 5.0 | 12.0 | 8.0 | - | 0.6 | |
| 4 | 2.0 | 1.5 | 4.0 | 2.5 | 7.0 | 4.0 | - | - | |
| 5 | 1.0 | 0.8 | 3.0 | 2.0 | 5.0 | 3.0 | - | - | |
| 6 | 0.8 | 0.6 | 2.0 | 1.5 | 3.5 | 2.5 | - | - | |
| 8 | - | - | 1.2 | 1.0 | 2.0 | 1.6 | - | - | |
| 10 | - | - | 1.0 | 0.8 | 1.8 | 1.3 | - | - | |
| 12 | - | - | 0.8 | 0.5 | 1.3 | 1.0 | - | - | |
| 16 | - | - | - | - | 1.0 | 0.8 | - | - | |
| 20 | - | - | - | - | 0.8 | 0.6 | - | - | |
| 不锈钢（空气辅助） | 0.2 | - | - | - | - | - | 25.0 | 30.0 | |
| 0.4 | - | - | - | - | - | 10.0 | 18.0 | ||
| 0.5 | 25.0 | 20.0 | - | - | - | - | - | - | |
| 0.6 | - | - | - | - | 3.8 | 9.0 | |||
| 0.8 | 20.0 | 16.0 | - | - | - | - | 1.6 | 5.0 | |
| 0.8(带膜切) | 15.0 | 10.0 | - | - | - | - | - | - | |
| 1 | 15.0 | 10.0 | 24.0 | 16.0 | 35.0 | 22.0 | 1.0 | 2.2 | |
| 1.5 | - | - | - | - | 0.6 | 1.2 | |||
| 2 | 6.0 | 4.0 | 10.0 | 6.0 | 16.0 | 10.0 | - | 0.5 | |
| 3 | 1.5 | 1.0 | 3.0 | 2.0 | 9.0 | 5.0 | - | - | |
| 4 | - | 2.0 | 1.5 | 4.5 | 3.0 | - | - | ||
| 5 | - | 1.3 | 1.0 | 3.5 | 2.5 | - | - | ||
| 6 | - | - | - | 3.0 | 2.0 | - | - | ||
| 8 | - | - | - | 1.2 | 1.0 | - | - | ||
| 镀锌板（氧气辅助） | 0.5 | 20.0 | 16.0 | - | - | - | - | - | - |
| 1 | 15.0 | 10.0 | 24.0 | 16.0 | 35.0 | 25.0 | - | - | |
| 2 | 5.0 | 3.0 | 8.0 | 5.0 | 12.0 | 8.0 | - | - | |
| 3 | 1.0 | 0.6 | 2.0 | 1.5 | 5.0 | 3.0 | - | - | |
| 4 | - | - | 1.2 | 1.0 | 4.0 | 2.5 | - | - | |
| 6 | - | - | - | - | 3.0 | 2.0 | - | - | |
| 铝板 | 0.5 | 3.0 | 2.5 | - | - | - | - | - | - |
| 1 | 2.4 | 2 | 8.0 | 6 | 13.0 | 10 | - | - | |
| 1.5 | 2.0 | 1.5 | 2.5 | 2 | 5.2 | 4 | - | - | |
| 2 | 1.5 | 1 | 1.8 | 1.5 | 2.6 | 2 | - | - | |
| 3 | 0.8 | 0.6 | 1 | 0.8 | 1.3 | 1 | - | - | |
| 4 | - | - | - | - | 1.0 | 0.8 | - | - | |
| 5 | - | - | - | - | 0.8 | 0.6 | - | - | |
| 铜板 | 0.5 | 2.0 | 1.5 | 3.0 | 2.5 | 5.0 | 4 | - | - |
| 1 | 1.5 | 1 | 2.0 | 1.5 | 3.0 | 2.4 | - | - | |
| 2 | 0.8 | 0.6 | 1.5 | 1 | 2.5 | 2 | - | - | |
| 3 | - | - | 0.7 | 0.5 | 1.5 | 1 | - | - | |
| 4 | - | - | - | - | 0.8 | 0.5 | - | - | |
