1、台湾安家数控车床MT-20
栉式刀架设计，避免刀塔重复定位之误差，搭配高精密或超精密气静压主轴。滑轨全面采用贴有TURCIT-B耐磨片的硬轨。最适合用于加工O.A.材料，计算机周边设备零件及其他精密机械零件等…。
|
ITEM |
Unit |
MT-20A |
MT-20B |
|
|
Capacity |
Swing over bed |
mm |
110 |
|
|
Standard diameter |
mm |
150 |
||
|
Turnable length |
mm |
100 |
||
|
Spindle |
Speed |
r.p.m |
60-6000 |
50-6000 |
|
Motor |
Kw/hp |
5.5/7.0 |
||
|
Chuck Size |
inch |
4” |
4” |
|
|
X-axis |
Stroke |
mm |
200 |
200 |
|
Rapid traverse |
m/min |
12 |
||
|
Servo motor |
Kw/hp |
0.75/1.0 |
||
|
Resolution |
um |
1.0 |
0.1 |
|
|
Feedback system |
Pulse coder |
Linear scale |
||
|
Z-axis |
Stroke |
mm |
150 |
|
|
Rapid traverse |
m/min |
12 |
||
|
Servo motor |
Kw/hp |
0.75/1.0 |
||
|
Resolution |
1.0 |
0.1 |
||
|
Feedback system |
Pulse coder |
Linear scale |
||
|
Tool |
Tool shank |
mm |
□20 |
|
|
Boring Bar |
mm |
φ25 |
||
|
Motor |
Hydraulic motor |
Kw/hp |
0.75/1.0 |
|
|
Coolant motor |
Kw/hp |
0.2(1/4) |
||
|
Dimension |
Packing |
cm |
L161 x W125 x H163 |
|
|
Weight |
kg |
1,500 |
1,600 |
|

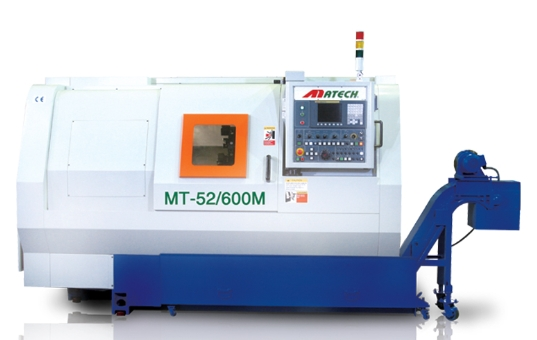

2、台湾安家数控车床MT-52
|
ITEM |
Unit |
/450 |
/600 |
/750 |
Sub |
|
|
Capacity |
Swing over bed |
mm |
600 |
φ600 |
||
|
Swing over cross slide |
mm |
380 |
φ380 |
|||
|
Diameter |
mm |
320 |
φ270 |
|||
|
Length |
mm |
430 |
580 |
730 |
450 |
|
|
Between center |
mm |
455 |
605 |
755 |
506 |
|
|
Bar capacity |
mm |
φ52 |
φ45 |
|||
|
Spindle |
Chuck size |
inch |
8” |
6” |
||
|
Spindle motor |
α18iP |
112M |
||||
|
Speed |
RPM |
3600 |
5000 |
|||
|
Hole through |
mm |
φ63 |
φ56 |
|||
|
Bearing I.D. |
mm |
φ100 |
φ90 |
|||
|
X-axis |
Stroke |
mm |
200+20 |
185+25 |
||
|
Motor |
α12i |
|||||
|
Speed |
m/min |
20 |
||||
|
Z-axis |
Stroke |
mm |
450 |
600 |
750 |
540 |
|
Motor |
α12i |
|||||
|
Speed |
m/min |
24 |
||||
|
B-axis |
Stroke |
mm |
495 |
|||
|
Motor |
Spindle motor |
Kw/hp |
11(15) |
|||
|
Axis motor |
Kw/hp |
3.0(4) |
||||
|
Turret |
Type |
Hydraulic/Servo |
||||
|
Tool number |
Qty |
10 |
||||
|
Tool shank |
mm |
□25 |
||||
|
Boring Bar |
mm |
φ40 |
||||
|
Tailstock |
Quill diameter |
mm |
φ90 |
|||
|
Quill stroke |
mm |
120 |
||||
|
Quill taper |
MT |
5 |
||||

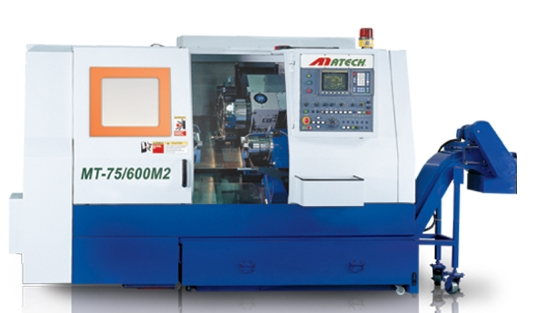

3、台湾安家数控车床MT75
咨询电话：15910974236
本机采用45度斜背刚性床身，所有滑动面皆贴有耐磨片。床身采用一体铸造高刚性，耐候、耐冲击床身。主轴头采抗扭曲，抗热度型设计。主轴使用超精密双排滚柱轴承，呈现超现实组合，配用广域主轴马达，无齿轮传动，低震动低噪音。十工位油压高刚性刀塔，换刀快速精确，不论在断续切削，轻、重切削，或µm级精修，都能有卓越的表现。适合汽机车及机械五金零组件加工及重切削…等之加工。(本机种提供：C轴、动力刀塔、副主轴等选择性功能，亦可规划成全自动车洗加工单元)。
|
ITEM |
Unit |
/600 |
/1100 |
/1600 |
/2100 |
|
|
Capacity |
Swing over bed |
mm |
640 |
|||
|
Swing over cross slide |
mm |
480 |
||||
|
Diameter |
mm |
360 |
||||
|
Length |
mm |
500 |
1000 |
1500 |
2000 |
|
|
Max. Diameter |
mm |
φ400 |
||||
|
Bar capacity |
mm |
φ75 |
||||
|
Spindle |
Speed |
RPM |
3500 |
|||
|
Chuck Size |
mm |
φ254(10”) |
||||
|
SPINDLE NOSE |
inch |
A2-8 |
||||
|
Hole through |
mm |
φ87 |
||||
|
Bearing I.D. |
mm |
φ130 |
||||
|
Motor |
Spindle motor |
Kw/hp |
22/α40iP |
|||
|
Turret |
Tool number |
Qty |
10 |
|||
|
Tool shank |
mm |
25(option=32) |
||||
|
Boring Bar |
mm |
Stander: φ40(optional: φ50) |
||||
|
X-axis |
Speed |
m/min |
18 |
|||
|
Ball screw dia. |
mm |
φ32 |
||||
|
Motor |
Kw/hp |
α12i |
||||
|
Stroke |
mm |
225+50 |
||||
|
Z-axis |
Speed |
m/min |
24 |
|||
|
Ball screw dia. |
mm |
40 |
||||
|
Motor |
Kw/hp |
α22i |
||||
|
Stroke |
mm |
600 |
1100 |
1600 |
2100 |
|
|
Tailstock |
Quill diameter |
mm |
110 |
|||
|
Quill taper |
inch |
MT-#5 |
||||
|
Tailstock stroke |
mm |
500 |
1000 |
1500 |
2000 |
|
|
Quill stroke |
mm |
110 |
||||
|
Control system |
FAUNC |
0i-T(Option21i-T; 18i-T) |
||||

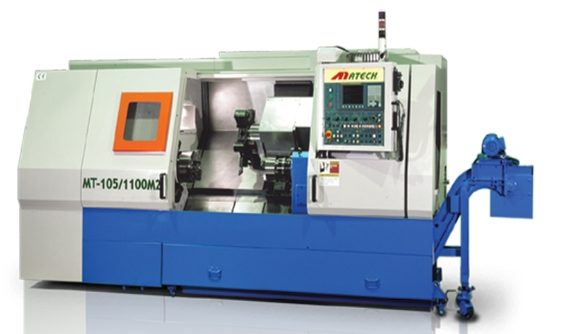

4、台湾安家数控车床MT105
本机采用45度斜背刚性床身，所有滑动面皆贴有耐磨片。床身采用一体铸造高刚性，耐候、耐冲击床身。主轴头采抗扭曲，抗热度型设计。主轴使用超精密双排滚柱轴承，呈现超现实组合，配用广域主轴马达，无齿轮传动，低震动低噪音。十工位油压高刚性刀塔，换刀快速精确，不论在断续切削，轻、重切削，或µm级精修，都能有卓越的表现。适合汽机车及机械五金零组件加工及重切削…等之加工。(本机种提供：C轴、动力刀塔、副主轴等选择性功能，亦可规划成全自动车洗加工单元)。
|
ITEM |
Unit |
/600 |
/1100 |
/1600 |
/2100 |
|
|
Capacity |
Swing over bed |
mm |
740 |
|||
|
Swing over cross slide |
mm |
580 |
||||
|
Diameter |
mm |
500 |
||||
|
Length |
mm |
500 |
1000 |
1500 |
2000 |
|
|
Max. Diameter |
mm |
φ580 |
||||
|
Bar capacity |
mm |
φ105 |
||||
|
Spindle |
Speed |
RPM |
2000 |
|||
|
Chuck Size |
mm |
15” |
||||
|
SPINDLE NOSE |
inch |
A2-11 |
||||
|
Hole through |
mm |
φ105 |
||||
|
Bearing I.D. |
mm |
φ160 |
||||
|
Motor |
Spindle motor |
Kw/hp |
26/α40iP |
|||
|
Turret |
Tool number |
Qty |
10 |
|||
|
Tool shank |
mm |
32 |
||||
|
Boring Bar |
mm |
φ50 |
||||
|
X-axis |
Speed |
m/min |
18 |
|||
|
Ball screw dia. |
mm |
φ32 |
||||
|
Motor |
Kw/hp |
3/α12i |
||||
|
Stroke |
mm |
225+50 |
||||
|
Z-axis |
Speed |
m/min |
24 |
|||
|
Ball screw dia. |
mm |
50 |
||||
|
Motor |
Kw/hp |
3.8/α22i |
||||
|
Stroke |
mm |
600 |
1100 |
1600 |
2100 |
|
|
Tailstock |
Quill diameter |
mm |
125 |
|||
|
Quill taper |
inch |
MT-#5 |
||||
|
Tailstock stroke |
mm |
390 |
890 |
1390 |
1890 |
|
|
Quill stroke |
mm |
150 |
||||
|
Control system |
FAUNC |
0i-T(Option21i-T; 18i-T) |
||||
